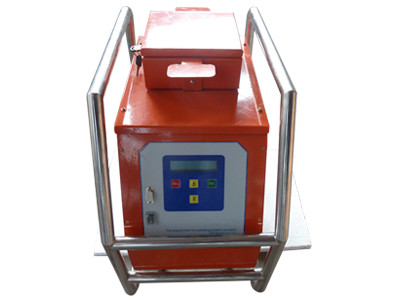

SD-EF800 Electrofusion welding machine
联系电话：13915274520
Application and features:
※Output voltage, RMS 8 v ~ 135 v AC
※With monitoring the welding current, interrupt abnormal function of the welding process.
※Automatic voltage regulator, power supply voltage, the more limited protection.
※Welding automatic temperature compensation to the environment.
※Chinese menu, easy to operate.
※Automatically save the state of welding process parameters, it can be to remove welding records, print, U disk is derived.
※Systems that can perform self-check, common failures in Chinese hints.
The main parameters:
Model | SD-EF800 |
The power supply voltage | 220V/380V±20V 50HZ AV |
The output voltage RMS | 8v～135V AC |
The output power | 12KW |
Maximum welding range | 800mm |
The environment temperature | -15～+50℃ |
Time range | 1～9999 seconds |
Time resolution | 1 seconds |
Time precision | 0.1% |
The output voltage accuracy | ±1% |
Store the data | 500article |
Data interface | Support the printer interface and RS232 interface, usb interface |
EN ISO 1200-1,EN 1200-2,EN 1050,60204-1
