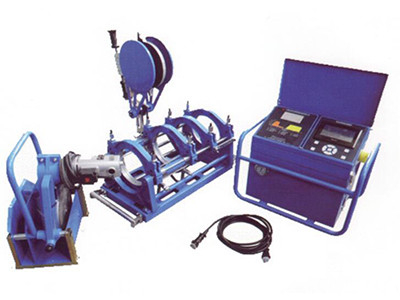

SD-FA315 Fully automatic butt fusion welding machine
联系电话：13915274520
Application and Features:
※ Applicable to connect the PE, PP, PVDF pipe;
※ By frame, hydraulic station, electric control of milling cutter and the bracket of the heating plate;
※ System with real-time welding data record and print functions, and can be derived via USB data;
※ System with DVS2207-1 welding standard, and support custom Settings;
※ The standard single chip fixture, the pipeline to enhance accuracy
Optional components:
※ Short flange welding special fixture
The main parameters:
Model | SD-FA315 |
Welding range （mm） | 160，200，250，315 |
The highest temperature heating plate | 270℃ |
The heating plate surface temperature difference （170-250℃） | ≤±5℃ |
Pressure regulating range | 0.4-6Mpa |
Working voltage | 220V 50Hz |
The heating plate power | 3 KW |
Milling power | 1.1 KW |
Hydraulic total power | 0.75 KW |
The total power | 4.85 KW |
The weight |
EN ISO 1200-1,EN 1200-2,EN 1050,60204-1
